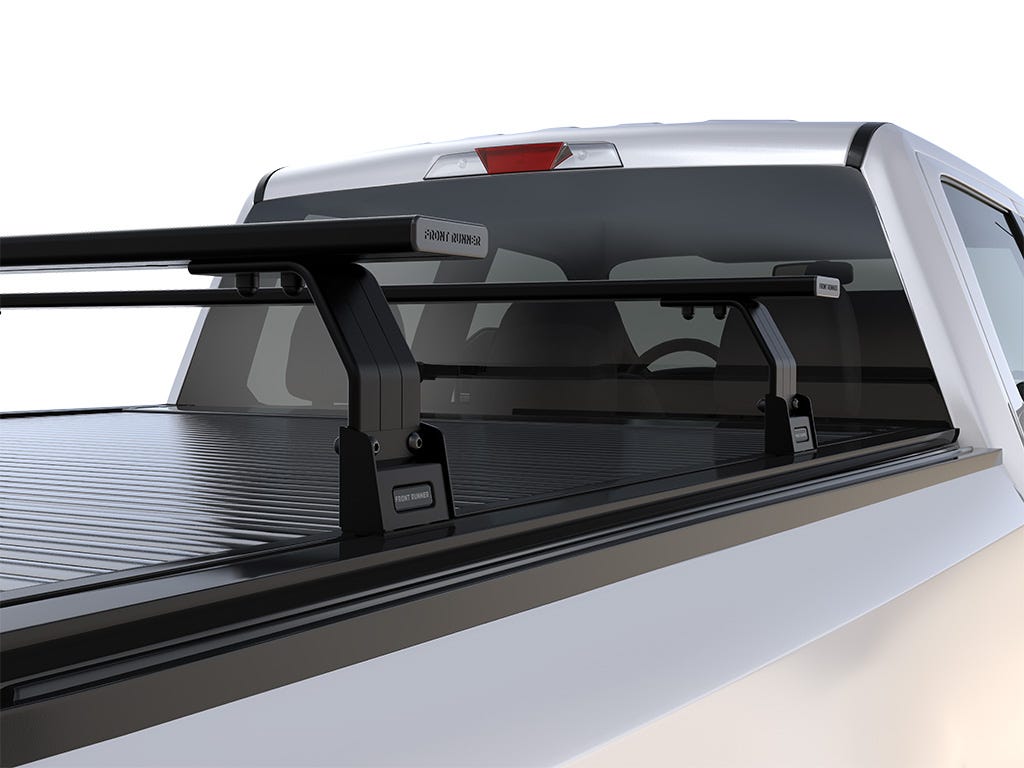

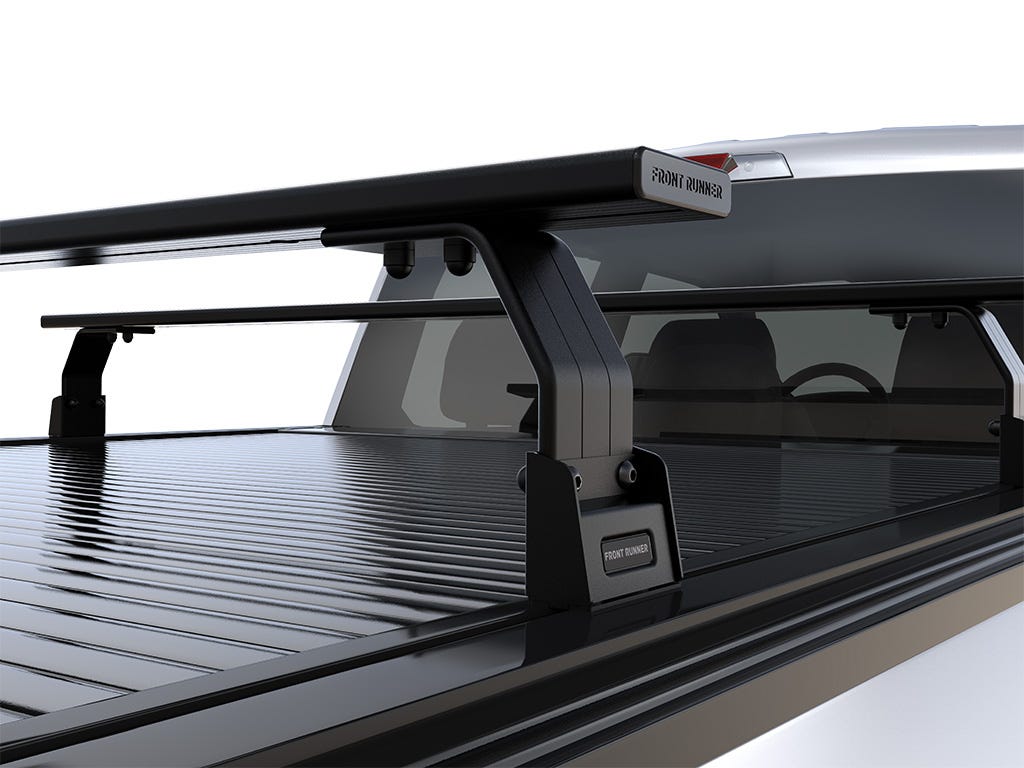

A set of Pickup Bed Load Bars used to transport gear over the bed of your Chevrolet Silverado/GMC Sierra 1500/2500/3500 when fitted with a ReTrax XR rails. This low profile solution includes 4 Pickup Roll Top Leg Mounts, 2 x 1575mm Load Bars that fit into the existing ReTrax XR rails, and fitting instructions. The Load Bars are mounted via Pickup Roll Top Load Mounts that bolt directly into the existing ReTrax XR rails. Allows for gear to be mounted above the pickup’s load bed. The load bed retains its load-carrying ability, while the drop-down door functions as usual. Uses the same strong, corrosion-free aluminum slats found in Front Runner Racks. The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats. Made from stainless steel and a durable, weather-resistant black powder coated aluminum. Includes all hardware, components, and the installation guide needed to fit Load Bars on a vehicle. Note: If your Roll Top extrusion has a 6mm (0.24'') to 7mm (0.28'') slot opening, you may need RRAC962 for installation. Note: The load per Load Bars must not exceed 55lbs or 25kg, and ensure the load is distributed evenly. For larger loads, additional Load Bars may be needed, please contact Customer Service for any enquiries.

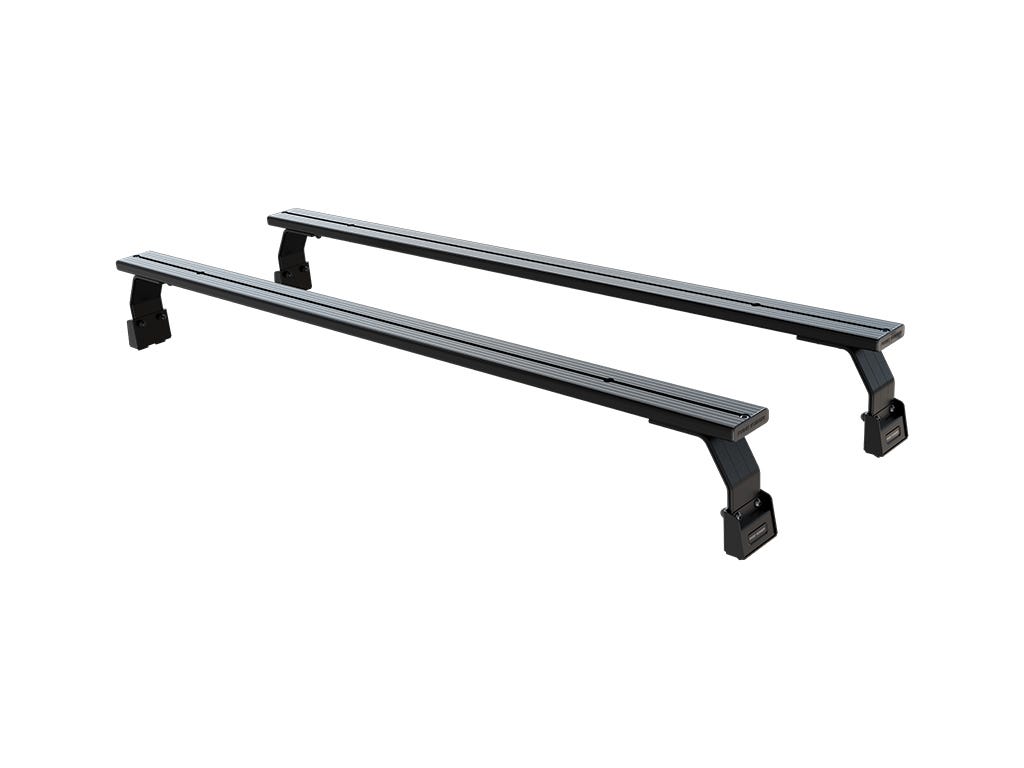

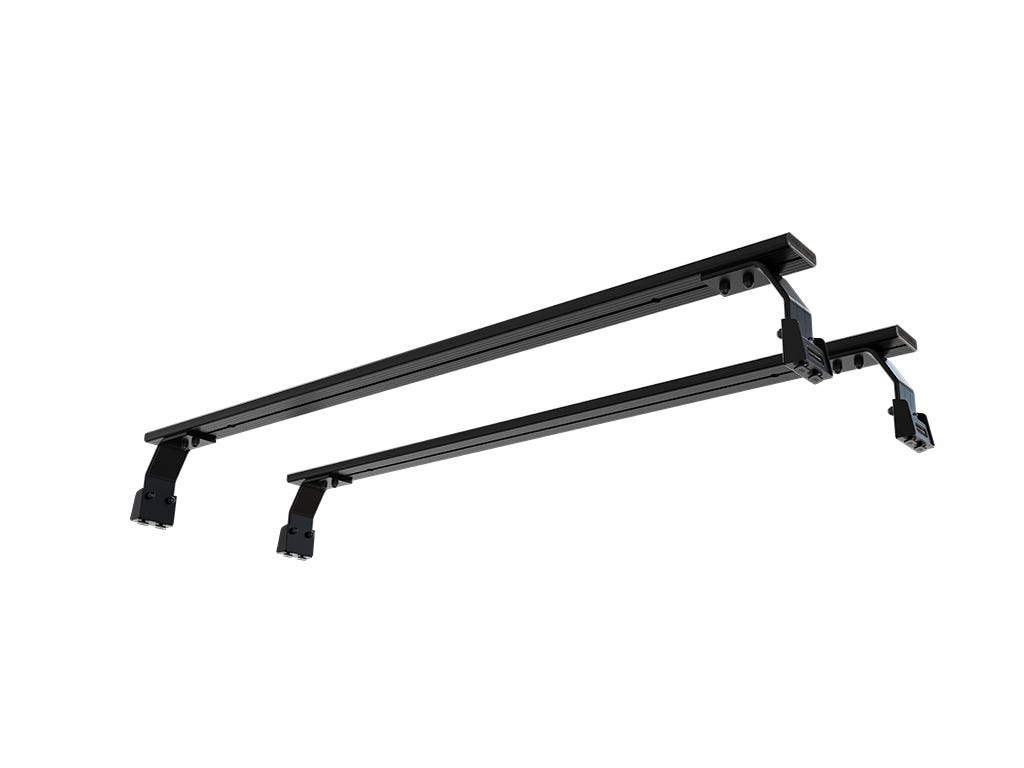

KRCS012 - Chevrolet Silverado/GMC Sierra 1500/2500/3500 ReTrax XR (1988-Current) Double Load Bar Kit - by Front Runner Consisting of: 2x LASS028 - Pick-Up Roll Top Leg Mount1x LBSK018 - Roof Load Bar Pair 1575mm(W)Material Used:Black epoxy powder - coated T6 aluminiumApproximate Installed Weight: 6.8kg (14.99lbs) The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8'') to the height of the Foot, Grab-On Foot listed above.If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8'') to the height of the Legs listed above to determine the height of the rack from your vehicle's rain gutters.If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8'') to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.Shipping Dimensions:Width: 160mm (6'')Length: 1690mm (67'')Height: 155mm (6'')Shipping Weight:Weight: 9kg (20lbs)
